OHM Top 12 "Full Range Speaker KT 12

KT-12

KT-12 passive cabinet is designed with a 800 W, 12” woofer and 1.75” compression driver capable of 132 dB SPL, in a compact lightweight enclosure. with a dispersion of 100° x 55° and frequency response of 48 Hz.

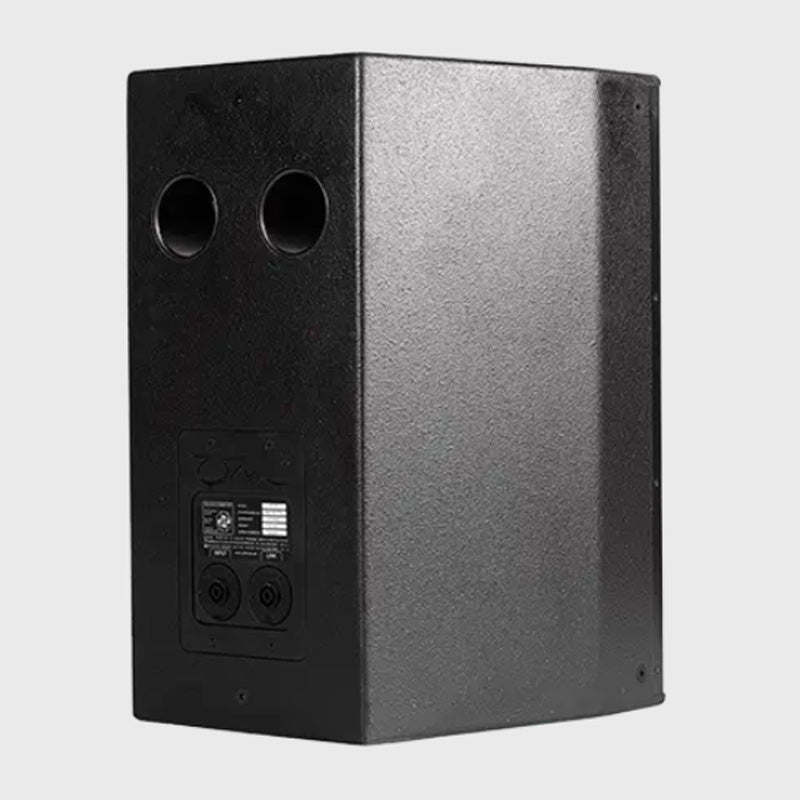

The rear cast aluminium connection plate has two 4 pin speakON® connectors fitted as standard, one input and one link. The speakON® connectors are wired on pins +1-1, with pass through of pins +2-2.

12寸内置两分频全频音箱；

频率响应(±3 dB) ：48Hz–19kHz；

额定阻抗：8ohms；

最大声压级输出：129dB(峰值: 132dB) ；

额定输入功率：700W(连续)，1400W(峰值)；

净重：21.7Kg；

低音单元：1只12英寸大功率低音单元；

高音单元：1只1.75寸PETP 振膜钕磁高音；

输入连接器 2x4芯 Speakon；

体积(高×宽×深)：598mm x 408mm x 405mm（西班牙原装进口）
