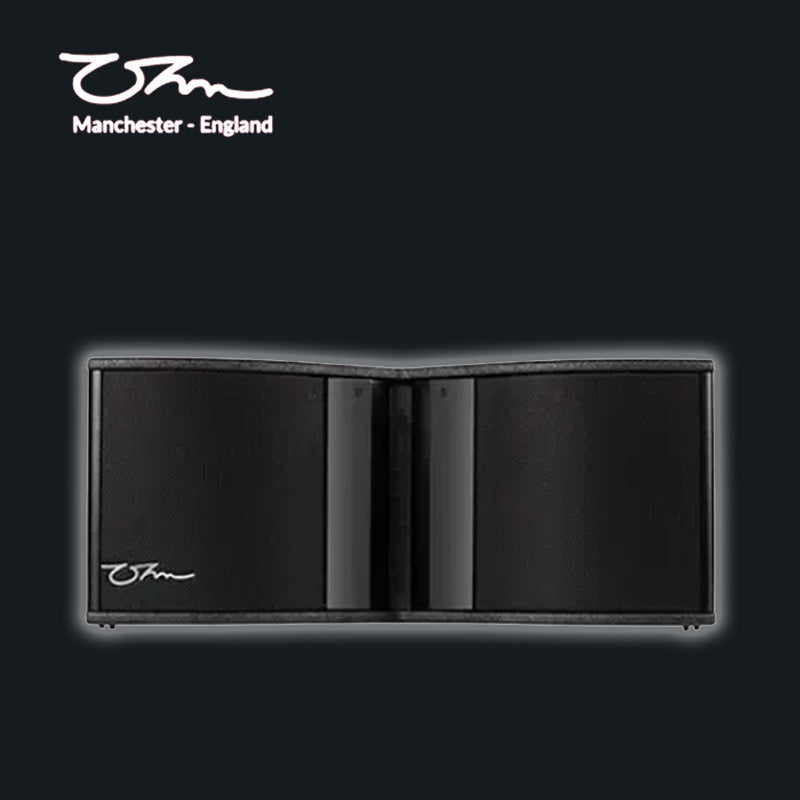

OHM Top Double 10 "Line Array Speaker LAV 210

LAV-210

LAV-210 linearray is designed with a 850 W, 2 x 10” woofer and 2 x 3” compression driver capable of 135 dB SPL, in a compact lightweight enclosure. with a dispersion of 120° x 7° and frequency response of 45 Hz.

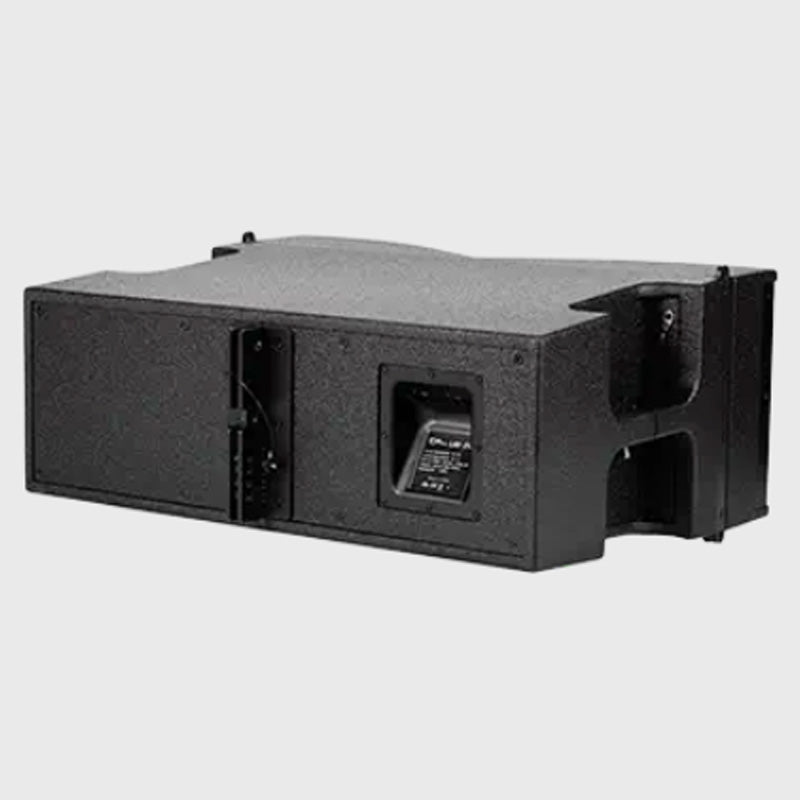

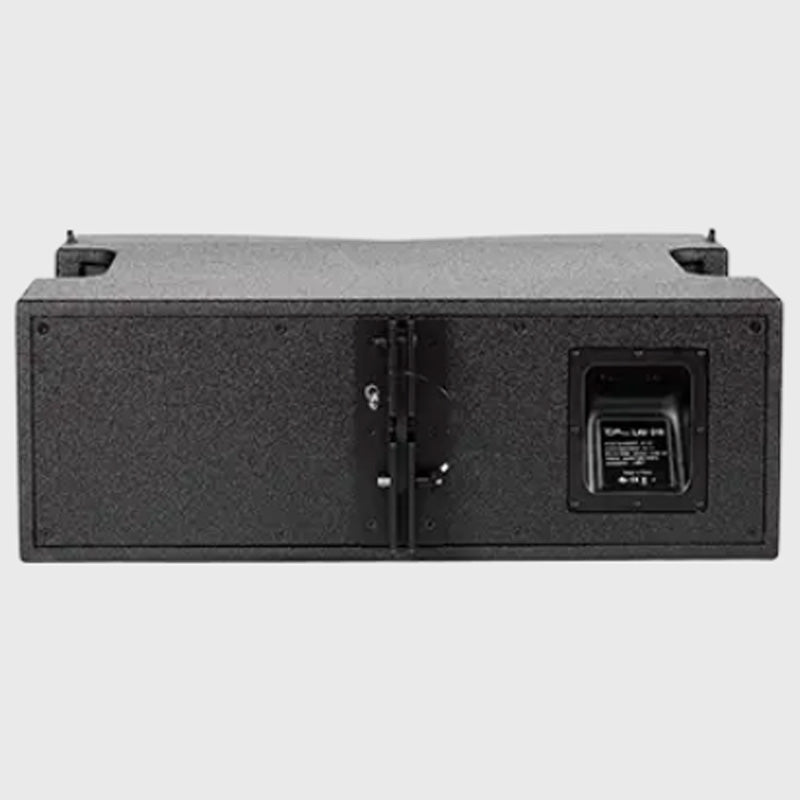

The rear cast aluminium connection plate has two 4 pin speakON® connectors fitted as standard, one input and one link. The speakON® connectors are wired on pins +1-1, with pass through of pins +2-2.

双10寸外置两分频线阵列音箱；

频率响应(±3 dB)：70Hz-18kHz；

额定阻抗：8ohms；

最大声压级输出：137dB ；

额定输入功率：LF/MF700W(RMS)；HF300W（RMS）；

净重：33.5Kg；

LF/MF 2x10＂单元、HF 2x3＂单元；

输入连接器 2个Neutrik® Speakon® NL4MP；

体积(高×宽×深)：740mm x320mm X580mm（国内组装）
